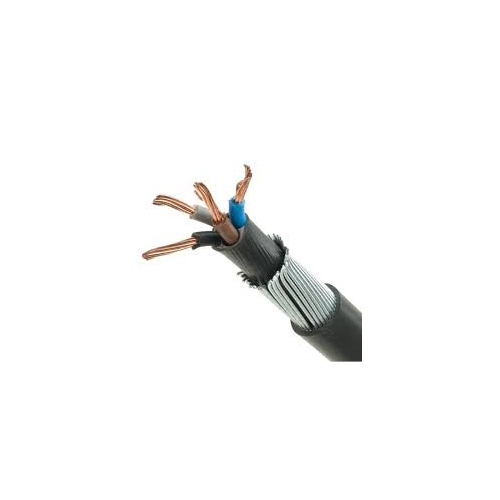

Cu Armoured Cable

Name: Cu Armoured Cable
Brand: MULTICAB CORPORATION PRIVATE LIMITED
Price: 1500 INR
Availability: InStock

Price 1500 INR/ Meter

Get a Price/Quote

Cu Armoured Cable Specification

Tensile Strength
High (standard for IS/BIS certified cables)

Impedance
As per IS 1554/IS 7098 standards

Operating Temperature
-10C to +70C

Armored Material
Galvanized Steel Wire Armour (SWA) / Aluminum Wire Armour (AWA) (varies with size/type)

Install Type
Direct Burial, Tray, Duct, Open Air

Number of Conductor
2, 3, 3.5, 4, or more (customization available)

Rated Temperature
Up to 70C

Cable Type
Armoured Power Cable

Core Number
2 Core, 3 Core, 4 Core, and customized

Weight
Variable by size and length

Core Material
Copper

Dielectiric Strength
3.5 kV (AC for 5 minutes)

Conductor Shape
Circular/Stranded

Insulation
PVC (General Purpose/HR/FRLS/Zero Halogen options available)

Locking Type
Not Applicable (standard cable configuration)

Features
Flame Retardant, Abrasion Resistant, High Tensile Strength, Weatherproof, UV Resistant, High Conductivity

Usage & Applications
Suitable for indoor/outdoor, direct burial, industrial, commercial & residential power distribution

Conductor Type
Stranded/Annealed

Diameter
Varies by size & core (standard dimensions as per IS standards)

Product Type
CU Armoured Power Cable

Length
Available in custom lengths (standard options: 50m, 100m, 500m)

Voltage
Up to 1100 V (1.1 kV)

Insulation Material
PVC (Polyvinyl Chloride)

Application
Power Distribution, Industrial, Underground, Construction, Outdoor installations

Conductor Material
Copper

Jacket Material
PVC

Storage Temperature
-10C to +60C

Connector Color
Copper (Conductor), Black (Sheath)

Shield Material
Copper

Jacket Color
Black

Dimension (L*W*H)
Dependent on cable size and core number (customizable)

Material
Copper, Steel, PVC

Color
Black outer sheath

Size
1.5 sq.mm to 400 sq.mm (various options available)

Sheath Type
Extruded Black PVC

UV Protection
Yes

Water Resistance
Yes, suitable for underground installation

Insulation Resistance
>1 G-km at 20C

Armor Coverage
100% Coverage (Full Circle)

Packing Type
Coil, Drum or as per requirement

Earth Marking
Green/Yellow for Earthing Core

Humidity Tolerance
Up to 95% RH (non-condensing)

Fire Resistance
Meets standard fire performance tests

Resistance to Oil and Chemicals
Yes (as per specification)

Minimum Bending Radius
12 x overall diameter

Cu Armoured Cable Trade Information

Minimum Order Quantity
10 Meter

Supply Ability
10000 Per Month

Delivery Time
3 Days

About Cu Armoured Cable

Sizzling deals await as you utilise this terrific offer on our Cu Armoured Cable-truly the finest masterpiece in robust electrical solutions. With resistance to oil and chemicals, these cables offer high performance, exceptional insulating resistance (>1 G-km at 20C), and meet the strictest fire resistance standards. Their 100% armor coverage ensures maximum safety, while UV and water resistance make them ideal for underground and outdoor use. Choose from a broad range of sizes and core numbers to secure a reliable, weatherproof bargain for all power distribution needs.

Versatile Application: Power Where You Need It Most

Cu Armoured Cable performs flawlessly across diverse application media, including power distribution in industrial, commercial, and residential sectors. Its robust design is perfect for direct burial, tray, duct, and open-air installations. Used as a primary power carrier, it supports construction sites and underground networks, delivering seamless energy transfer while withstanding harsh conditions. With exceptional weatherproofing and fire retardancy, this cable stands as the ideal solution for demanding environments requiring lasting performance and safety.

Domestic Market Support & Streamlined Delivery Process

Our Cu Armoured Cable is extensively supplied across the main domestic market in India, ensuring quick order processing and dependable availability. With stock ready for prompt dispatch, customers can expect efficient drop-off at the designated FOB ports. Our flexible sample policy allows for evaluation as per requirements, ensuring every order meets exacting standards. Experience a smooth transaction from stock confirmation to delivery, tailored for traders, suppliers, and large-scale users seeking timely, reliable cable solutions.

FAQ's of Cu Armoured Cable:

Q: How can I select the correct size and core count for my requirement?

A: Assess your application's voltage, current load, and installation type, then choose the size (from 1.5 to 400 sq.mm) and the appropriate number of cores (2, 3, 3.5, 4, or customized). Our team can help you determine the optimal configuration.

Q: What benefits does the Cu Armoured Cable offer in industrial applications?

A: The cable's high tensile strength, flame retardance, complete armor coverage, and chemical resistance make it ideal for industrial power distribution, ensuring long-term reliability and safety in harsh environments.

Q: Where is this cable most effectively used?

A: It's perfect for indoor and outdoor power distribution, direct burial, industrial, commercial, and residential sites, especially where exposure to oil, water, humidity, or sunlight is expected.

Q: What is the recommended process for storing and installing the cable?

A: Store the cable between -10C and +60C. During installation, maintain a minimum bending radius of 12 times the overall diameter and ensure the cable is laid in environments within its rated temperature range for best results.

Q: How does the sample policy and order processing work?

A: Sample requests are handled according to client needs for evaluation. Orders are processed promptly with ready stock, and delivery or drop-off is organized at primary domestic FOB ports, ensuring swift fulfillment.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in Co-axial Cable Category

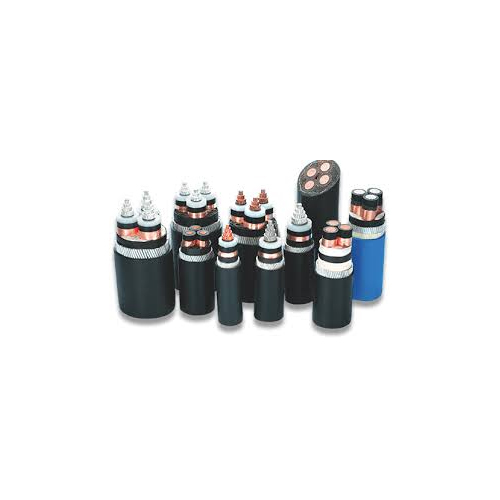

High Tension Ht Cables
